WHEAT MULTICROP THRESHER
WHEAT MULTICROP THRESHER
P-944
P-944
View More

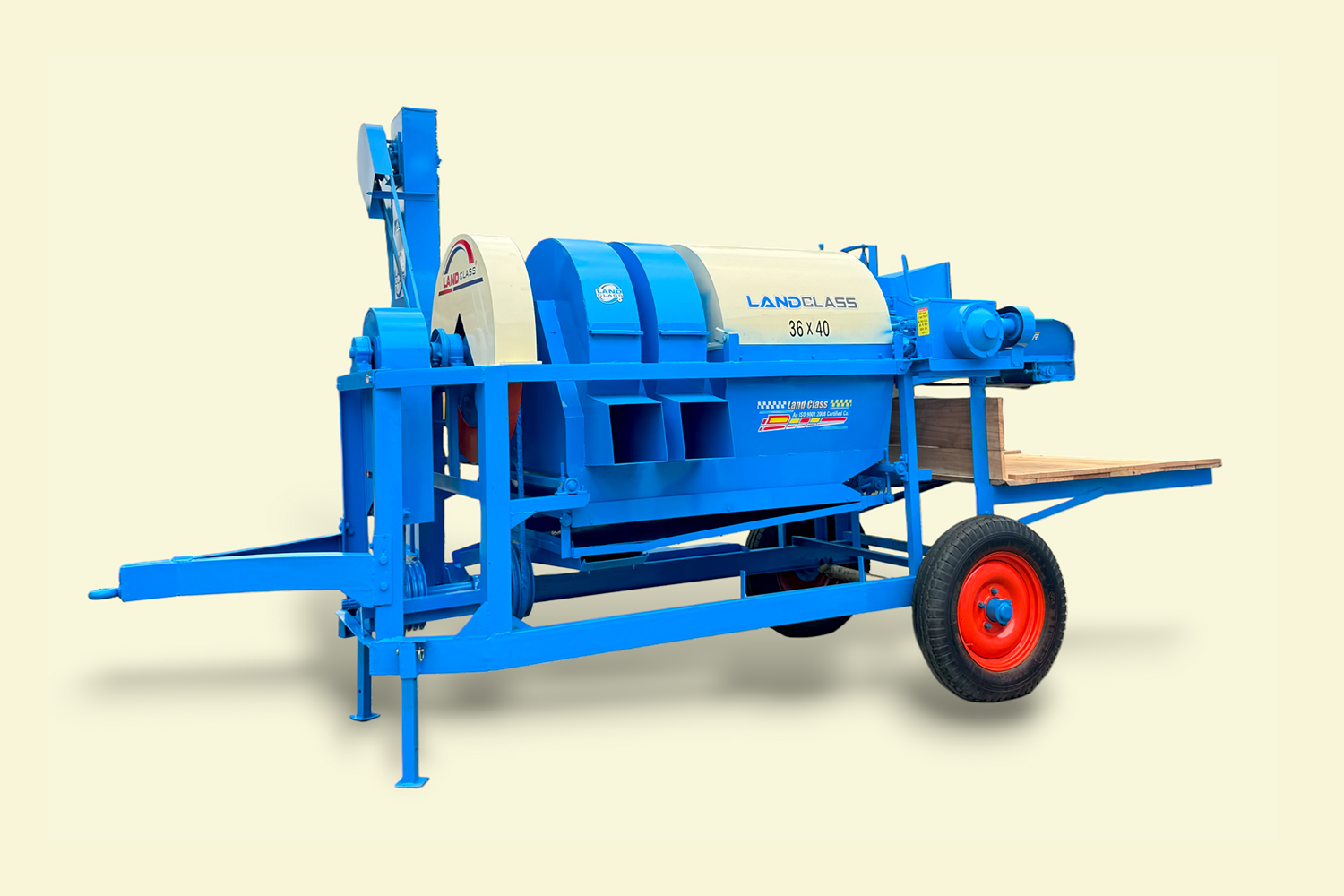

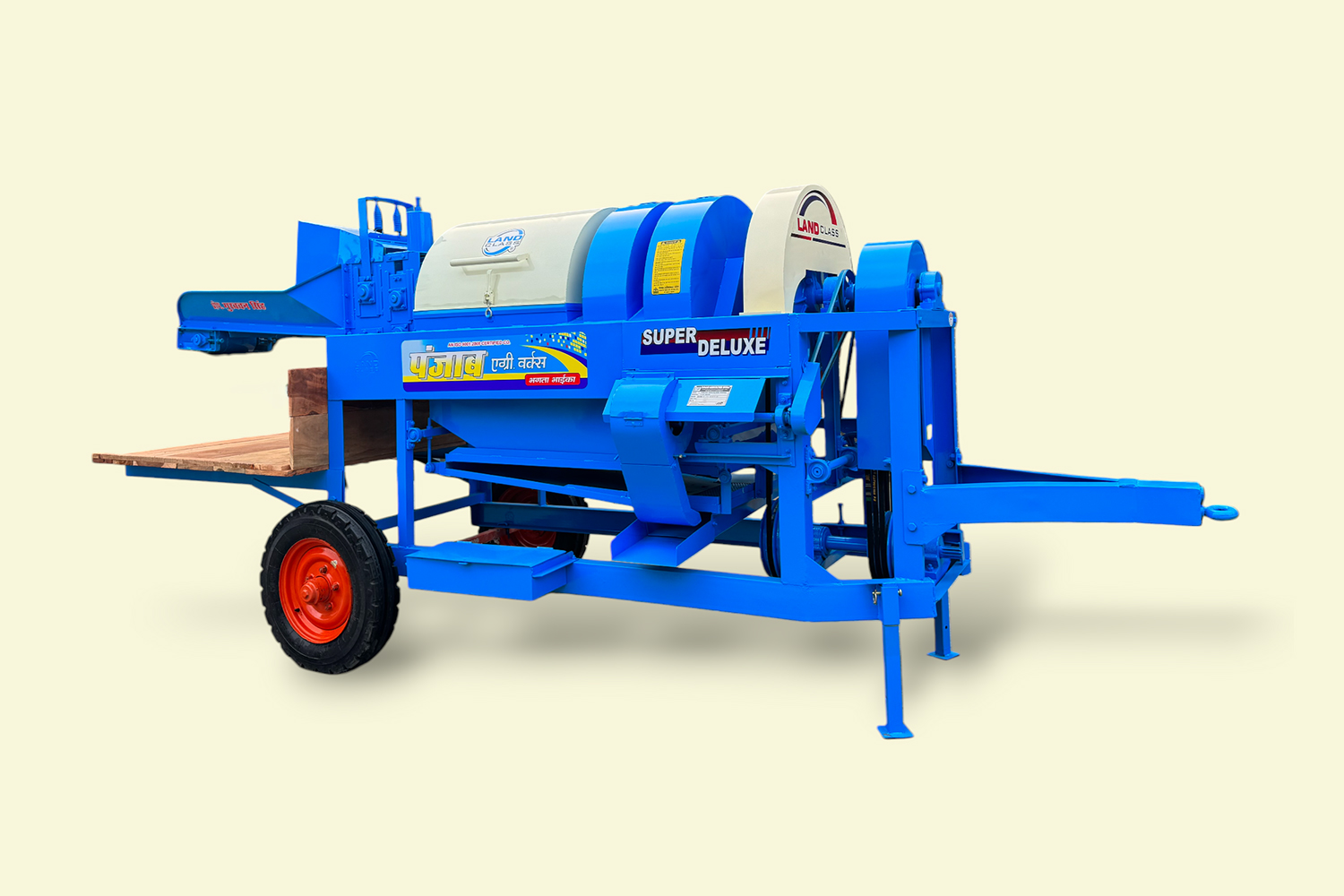

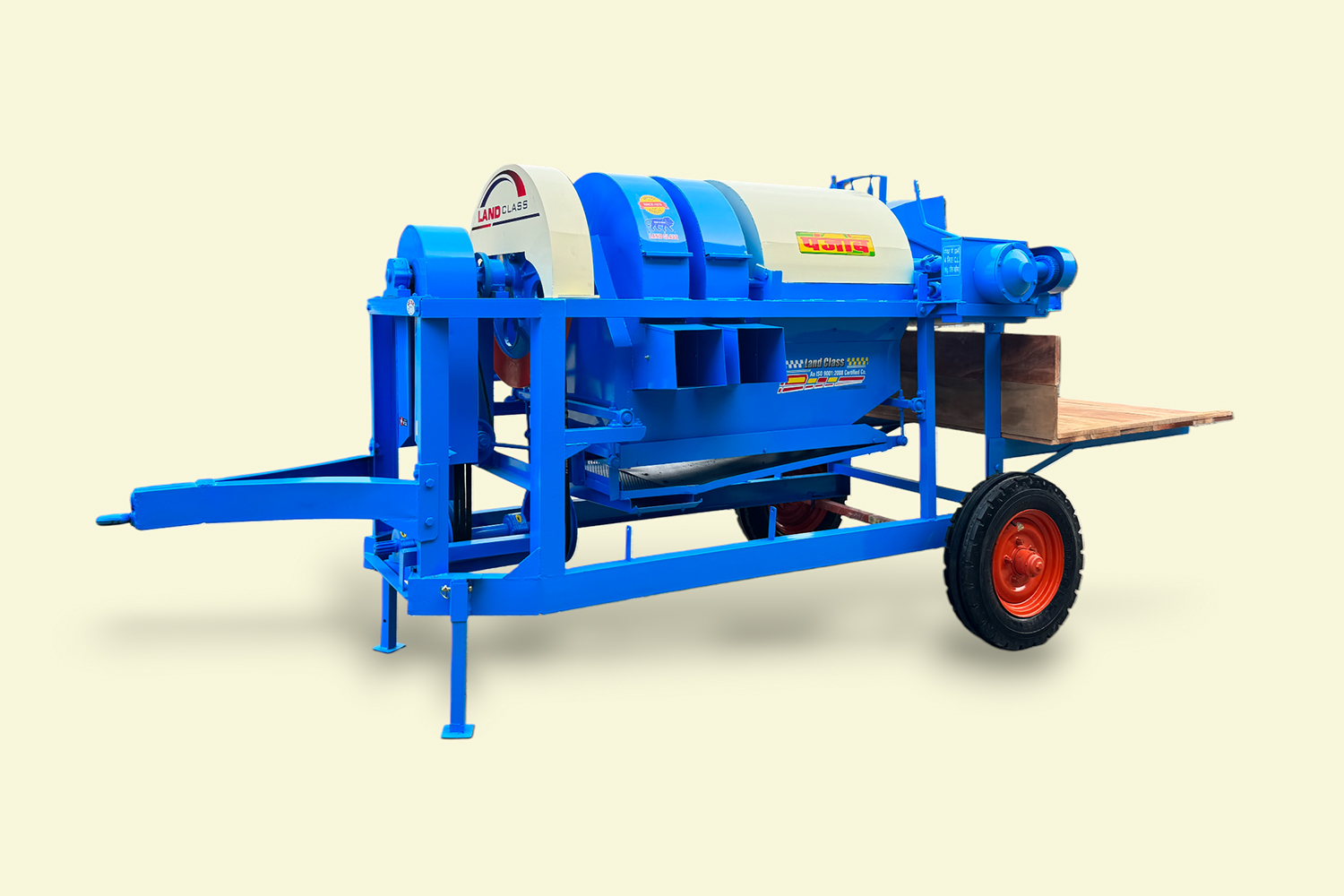

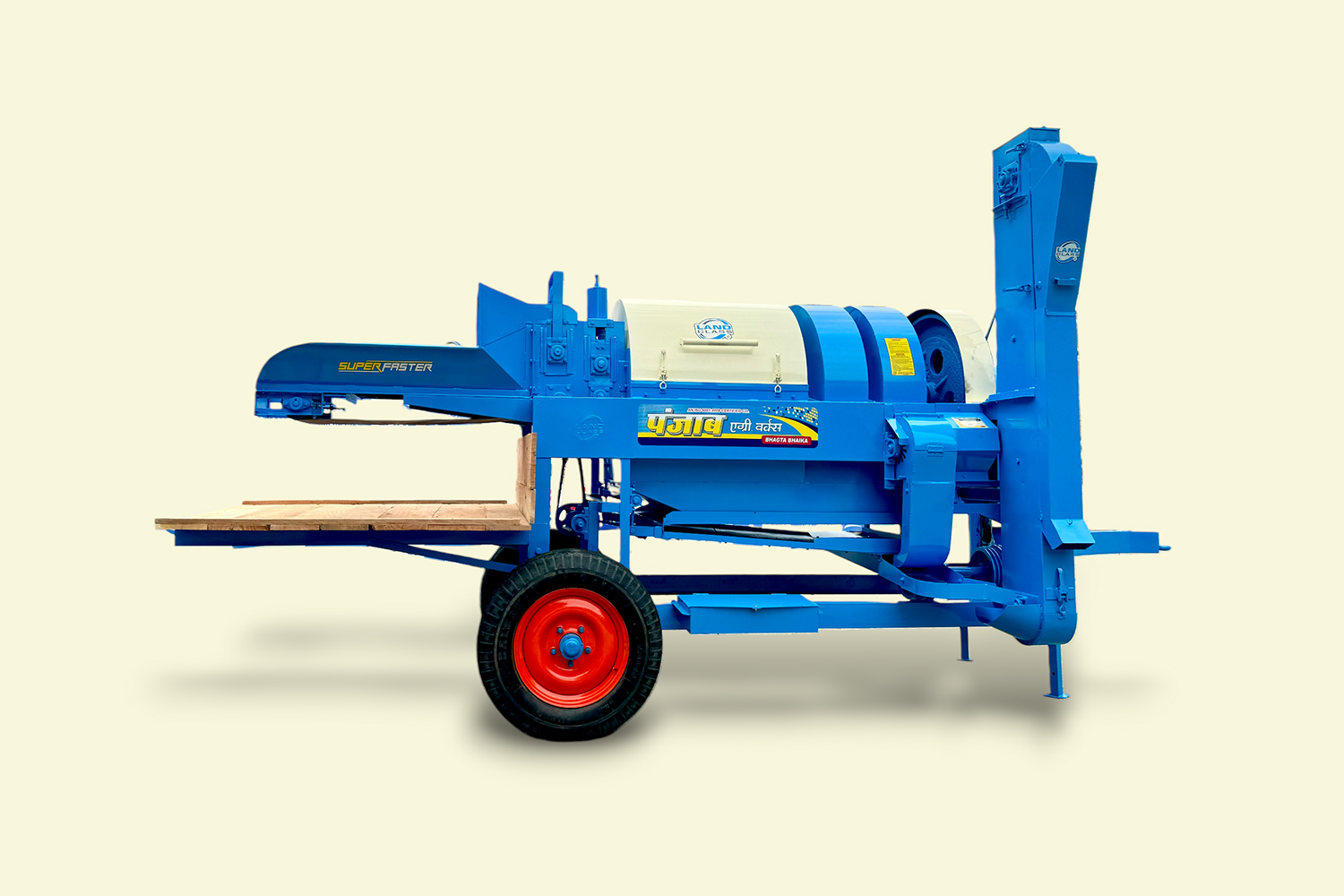

WHEAT MULTICROP THRESHER P-944
.jpg)
Product Description
Approved by GOVT. of India
SUBSIDY AVAILABLE
AUTO FEEDER: for the following crop- Wheat, Mustard, Moong, Soyabean, Gram, Channa, Cluster Bean
Technical Specifications
General
| MODEL NO. | P-944 |
|---|---|
| POWER REQUIRE | 35 HP |
| MOUNTED | P.T.O Drive |
| JOINT GEAR | 4 |
| DRUM SIZE | 32x36 |
| TYPE SIZE | 6x16 & 7x19 (Your Choice) |
| CLEARING FAN / BLOWER | 3 |
| MODEL NAME | Super Deluxe |
| GRINDER SIZE | AS PER CHOICE |
| NO. OF MAIN WHEEL | 1 |
| NO. OF BLADE | 2 and 3 (Your Choice) |
| WEIGHT APPROX | 14.50 Qtl. |
| OVERALL DIMENSION (In mm) | Height: 1828 Width: 1066 Length: 3657 |
Auto feeder for the following crop and Output capacity QTL/1Hr APPROX
| CROP | गेहूं WHEAT |
सरसों MUSTARD |
मसूर LENTIL |
मूंग MOONG |
सोयाबीन SOYABEAN |
चना GRAM |
मटर PEA |
ग्वार CLUSTER BEAN |
|---|---|---|---|---|---|---|---|---|
| P-933 | 12-16 | 8-10 | 8-12 | 8-10 | 12-15 | 8-10 | 8-12 | 8-10 |
| P-944 | 12-16 | 8-10 | 8-12 | 8-10 | 12-15 | 8-10 | 8-12 | 8-10 |
Product Features
It consists of feeding chute with automatic feeding, which is driven by the gear box.
Reverse gear can be use if necessary.
The threshing unit contains 2-3 sharp cutting blade with spike tooth cylinder.
The crop is cut in to small piece & rub against the concave, which gives superior
separating.
Two aspirator blowers are attached to threshing unit, which separates small piece of
crops residue from the seed.
Shaking & bagging unit are used to collect the seeds.
The unit is equipped with belts & pulleys to achieve variable cylinder speed, and the
speed of blower can change according.
It also consists of elevator or burm for loading seeds to trolley, pneumatic transport
wheel & single hitch system.
It is also provided with is a load wheel.
